Light source specification:
-
Light source:600W high brightness Module LED (in order to protect the led lifetime, the real power adjust to 550W)
-
Color temperature:7500K-8000K
-
Life time:50000 hours
-
colour:
-
1 color wheel: 8 colors + white
-
2.With C M Y function, color can be adjusted;
-
Can be mixed to make the color richer.
-
Gobo wheel:
-
1.1 rotating gobo wheel: 7 gobos + white
-
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
-
2.1 fixed gobo wheel:11 gobos + white
-
3.1 Framing system: can cut out any geometric pattern to make the effect more dazzling
-
Prism:
-
Two prism wheel, can be rotated in both directions
-
Focus:DMX linear focus adjustment, super smooth focus adjustment.
-
Strobe/Dimming:Electronic strobe, 0.3-25 times/second,linear dimming
-
Frost:Independent frost lens, softer light
-
Rotation angle: Use 3-phase stepping motor, fast, quiet, with automatic return function.
-
Horizontal:540°
-
vertical: 270°
-
Beam Angle:4-40°
-
DMX linear amplification, the beam angle can be freely switched from 4 to 40 degrees
-
Control mode:
-

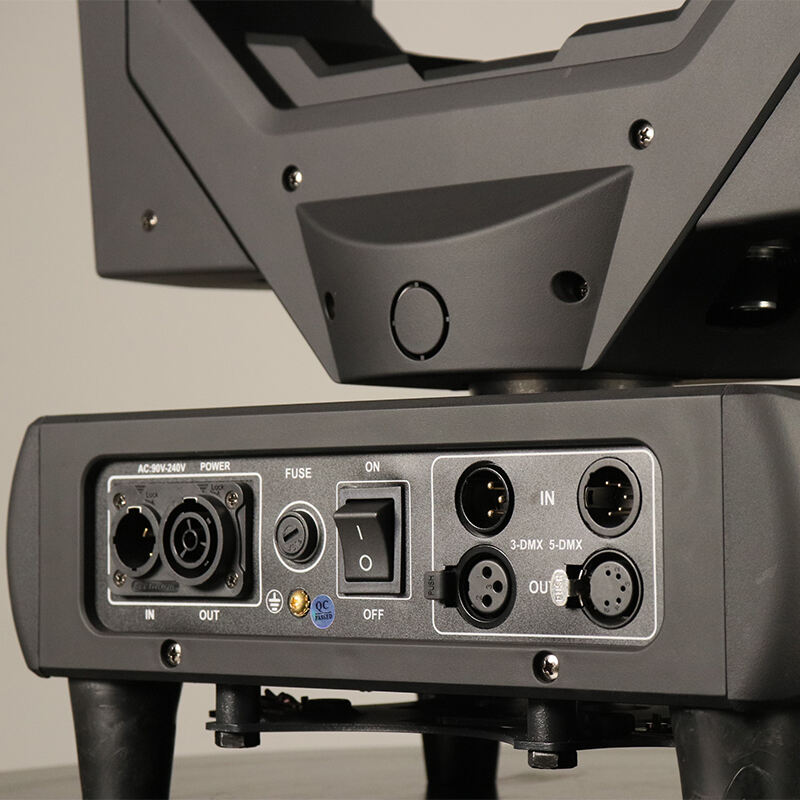

DMX512 signal, 3-pin + 5-pin
-
33CH channel mode
-
Other functions:
-
Horizontal and vertical speed adjustable
-
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
-
Modular structure for easy maintenance
-
Housing material/protection level:
-
High temperature/UV light resistant engineering plastic
-
Protection grade: IP20
-
Gross weight: 32.4kg
-
packing size: 55*40.5*89.5 cm
- Maximum ambient temperature 50°C
