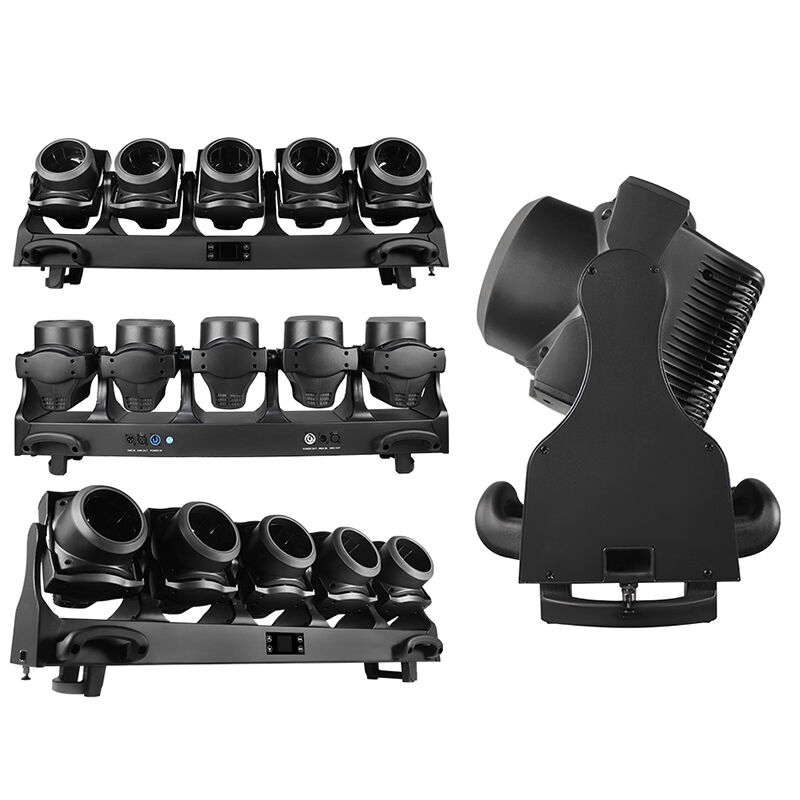

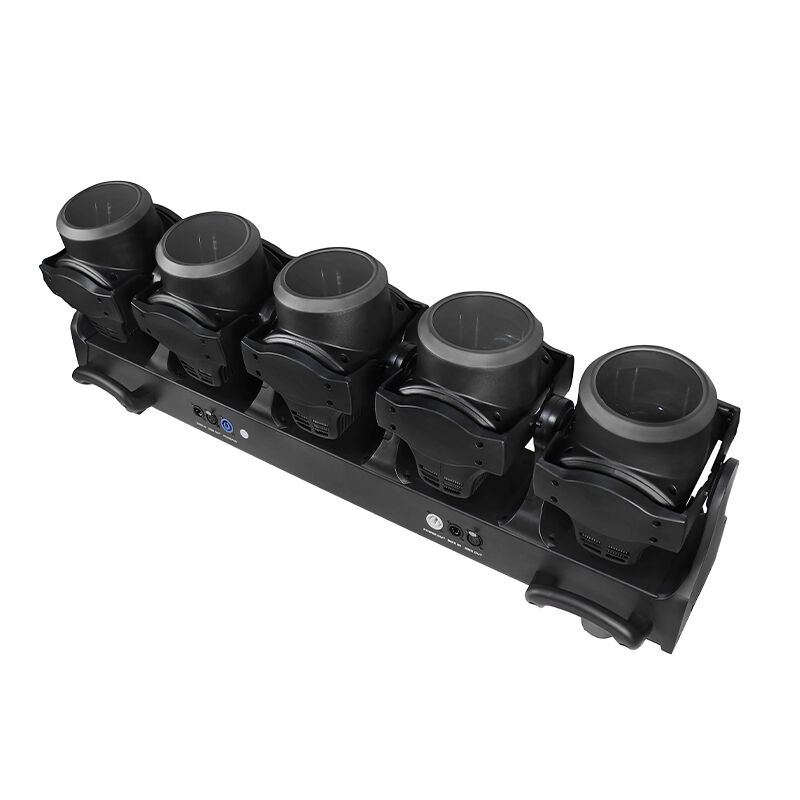

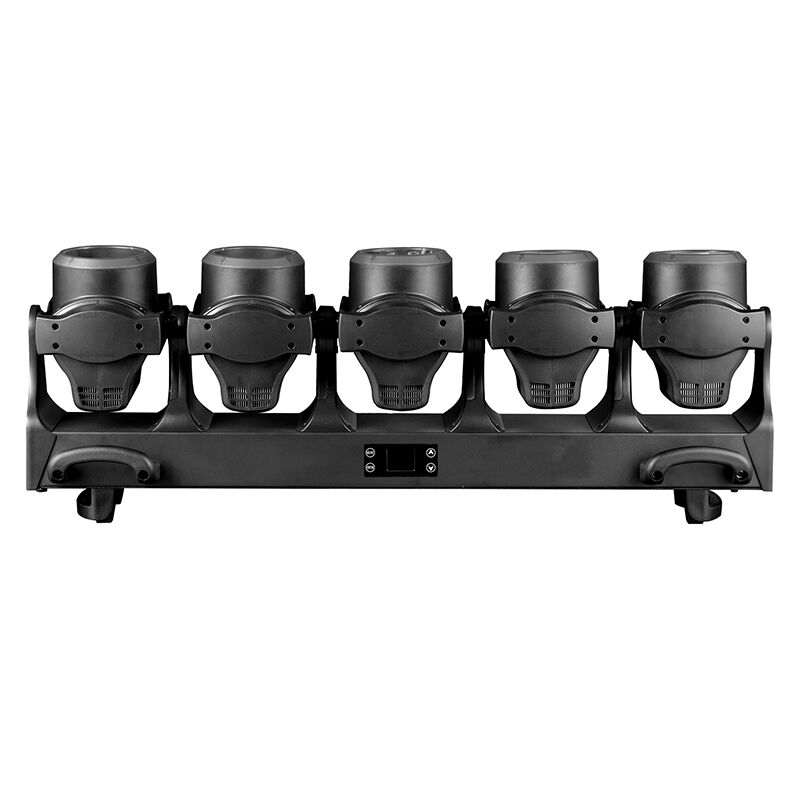

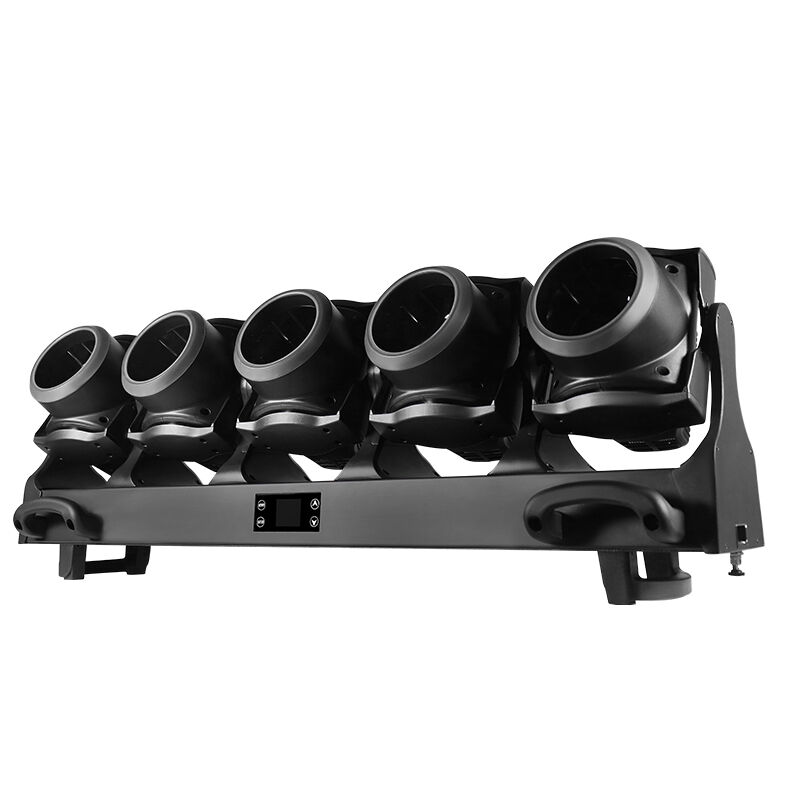

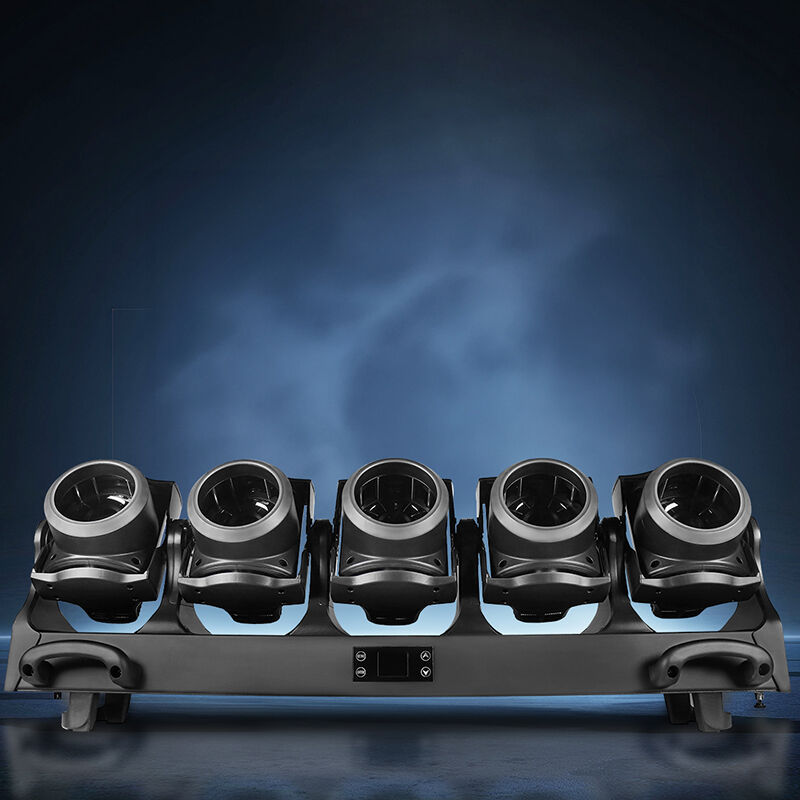

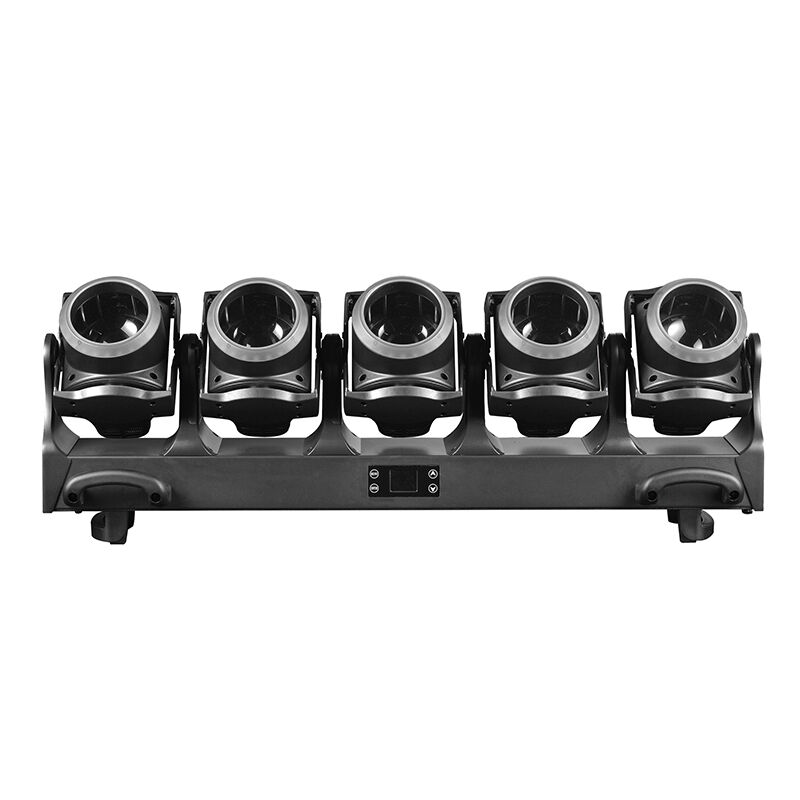

5x120w Beam Pixel Moving Head Light With Ring

Voltage: AC100-240V 50/60HZ
Power supply: 700W
Main beam: 120W * 5 LED high brightness light source
Auxiliary aperture: 1W * 120 LED 5050RGB
Main color: Red, Green, Blue, Lemon Green
Display screen: Chinese and English menus, Baiqi button 1.77 color screen
Focusing system: segmented independent single point single control
Beam angle: 3-30 °
Spot angle: 4-35 °
Strobe frequency: 1-25Hz
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Vertical angle: 220 ° in the vertical direction (16 bit precision scanning). The XY axis adopts high-speed mute for faster and smoother operation. When there is a misoperation, it can automatically return to its original position, and the vertical speed is adjustable; Y-axis rotation function and reverse function; Using optical electromagnetic coding for high-precision positioning
Vertical control: using 5 lamp heads with XY axis rotation, which can be independently controlled
Control signal: DMX512，RDM, Master slave, voice controlled or self-propelled program
Control channel: CH41, CH71 two channel modes default channel CH41
Power connection method: Power input/output, maximum connection quantity @ 2 units 230V, 1 unit 120V
Signal connection method: DMX512 input/output, maximum connection quantity of 30 3-core units
Support network protocol Artnet
Splicing method: Can be quickly spliced horizontally
Working temperature:- 10°C~45°C
IP rating: IP22
