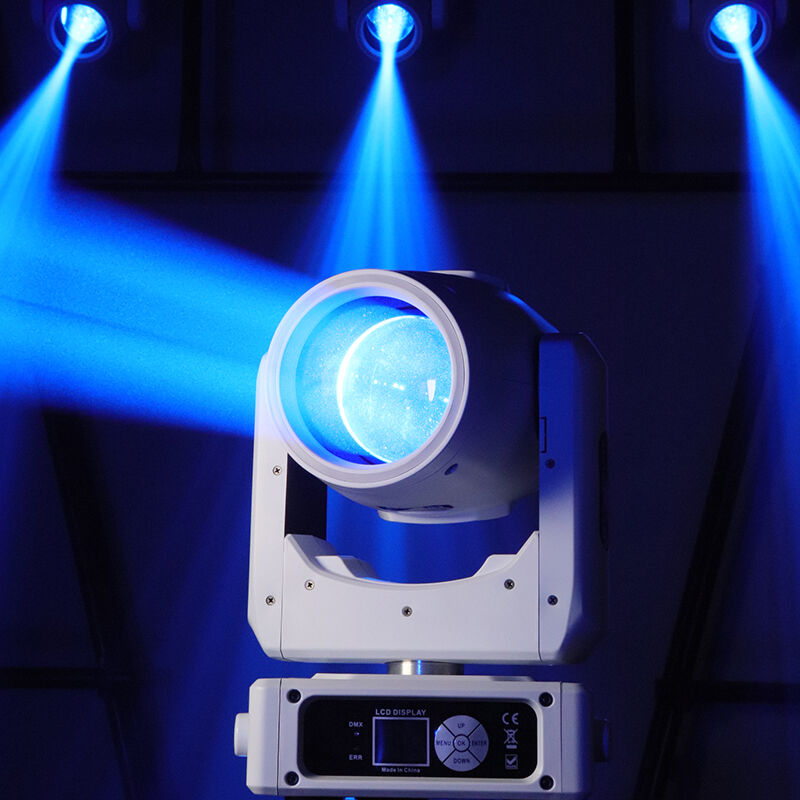

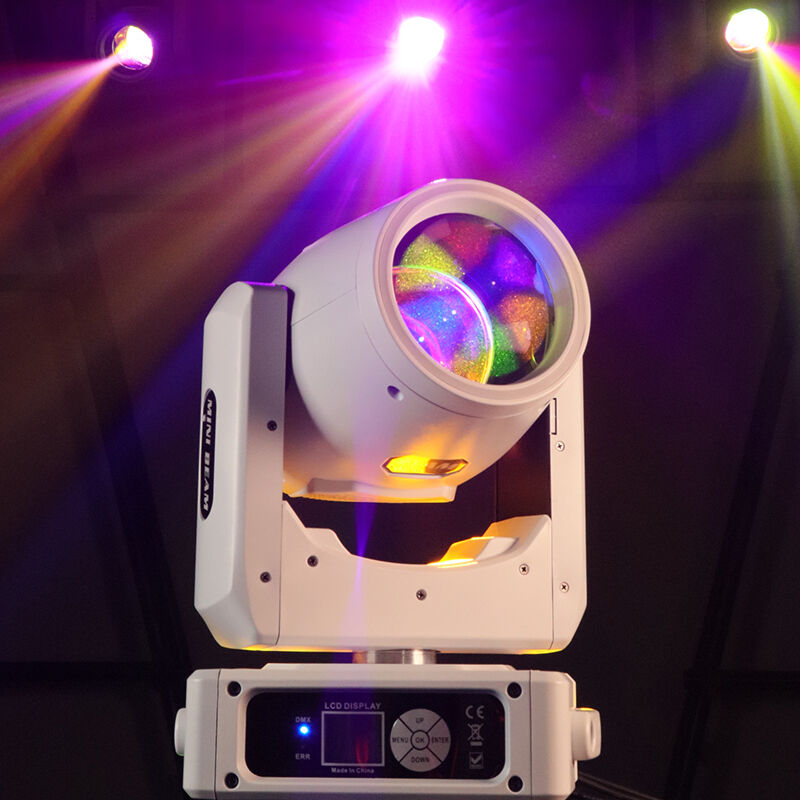

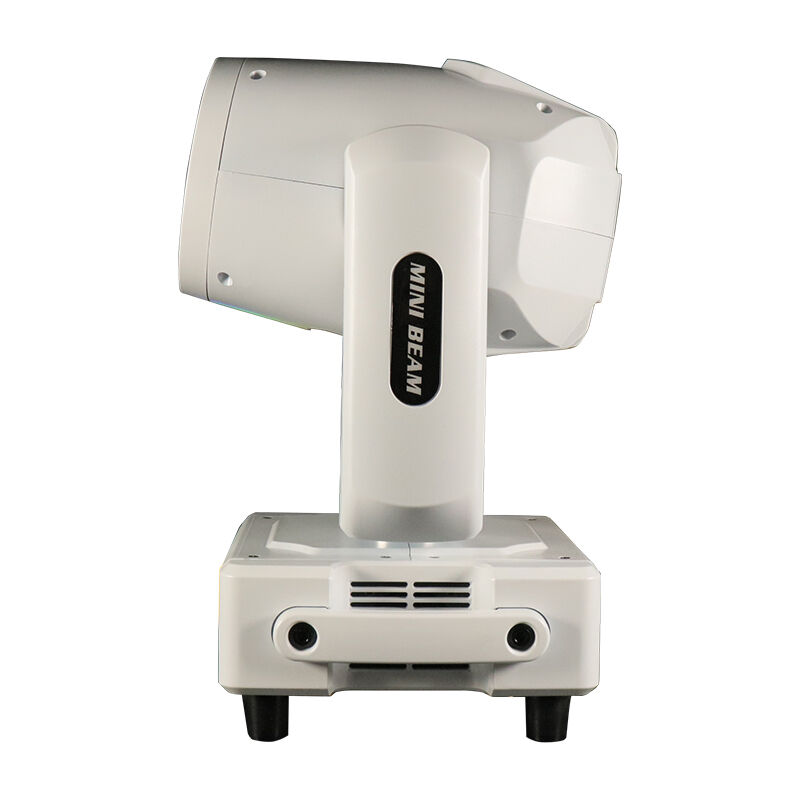

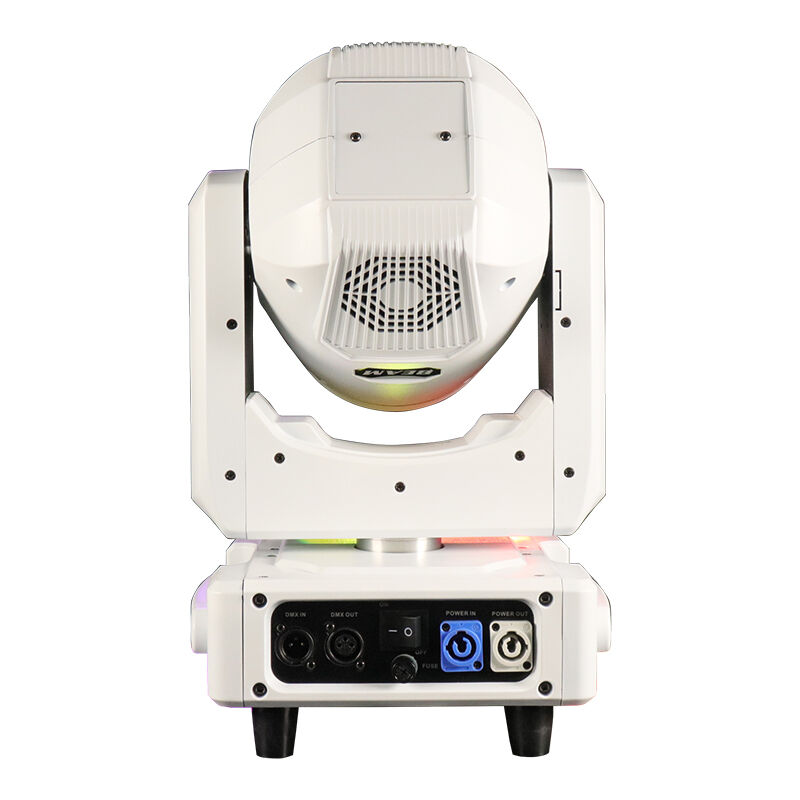

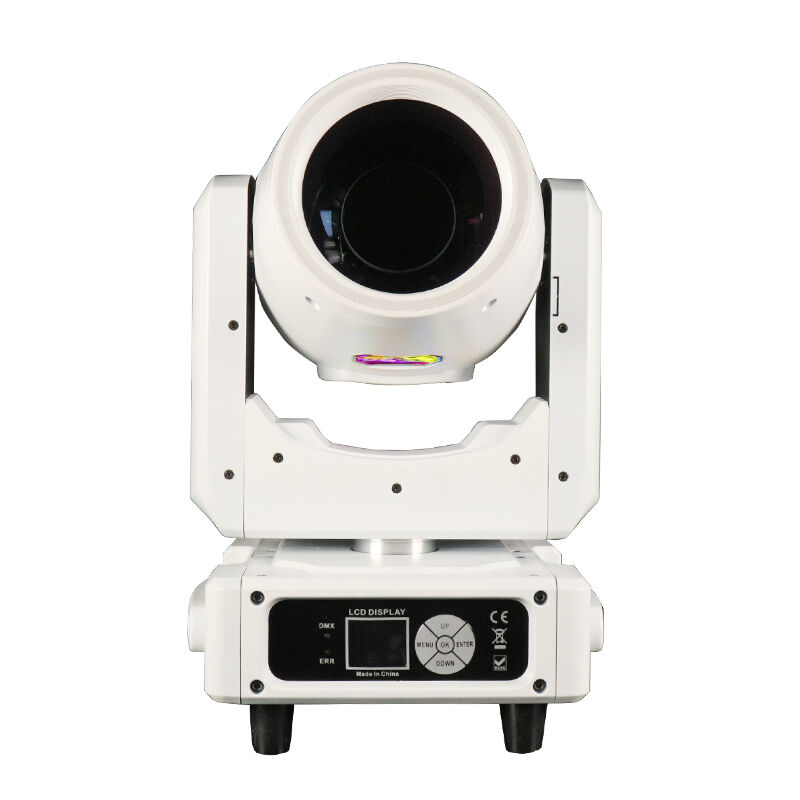

Mini230W Beam Moving Light With Ring
• Vibrant Effects: 14-color wheel, 17 gobos, rainbow & frost effects
• Precise Control: 18 DMX512 channels, 540° pan, 270° tilt
• Durable & Reliable: IP20 protection, overheat protection, magnetic ballast
Brand:
DJ & Production
24/7 Support
1095 Warranty
Lifetime Servic
- Parameters
- Demo Video
| Item | Specification | Item | Specification |
|---|---|---|---|
| Channel Mode | 18 DMX512 Channels with LED Ring Pixel Control | Pan Scan | 540° (16bit) Electric correction |
| Tilt Scan | 270° (16bit) Electric correction | Color Wheel | 14 colors in one wheel |
| Gobo Wheel | 17 kinds of gobos | Effect Wheel | Colorful Rainbow + Frost |
| Dimming | 0-100% mechanical dimming, free dimming available | Ring Strip | 25 pcs 5050 RGB LED |
| Lens Optical System | Mechanical focus, beam angle 2° | Prism Disk | 48 optional prisms |
| Protection | Overheat protection | Power Input | 100-240V, 50/60Hz |
| Power Supply | 450W | IP Level | IP20 |
| Magnetic Ballast | AC/DC Power Supply | Box Size | 50 × 34 × 36 cm |
| Weight | 12 kg | Certification | CE / FCC / ROHS |
