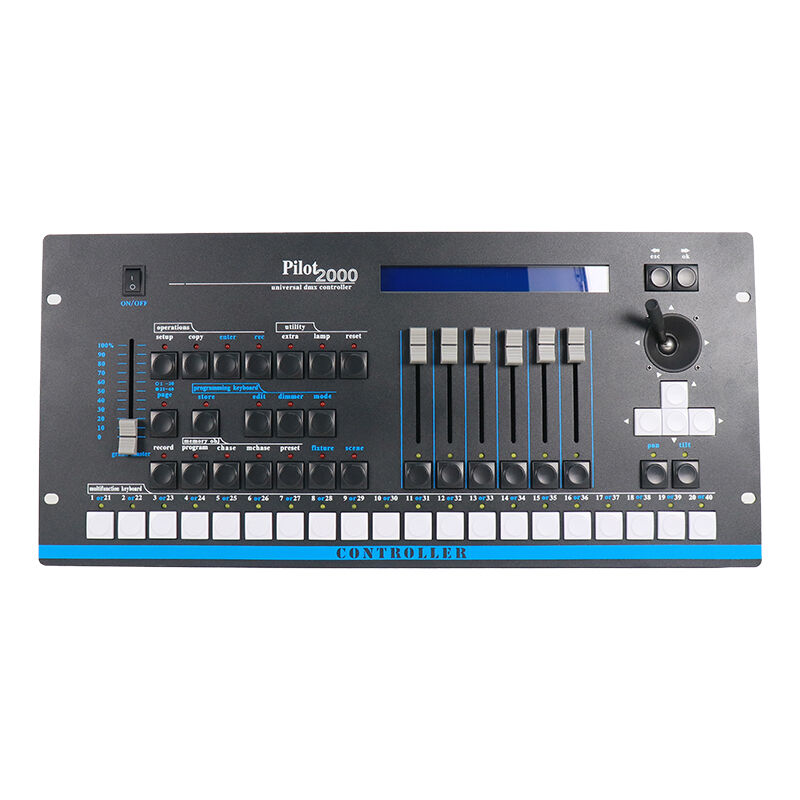

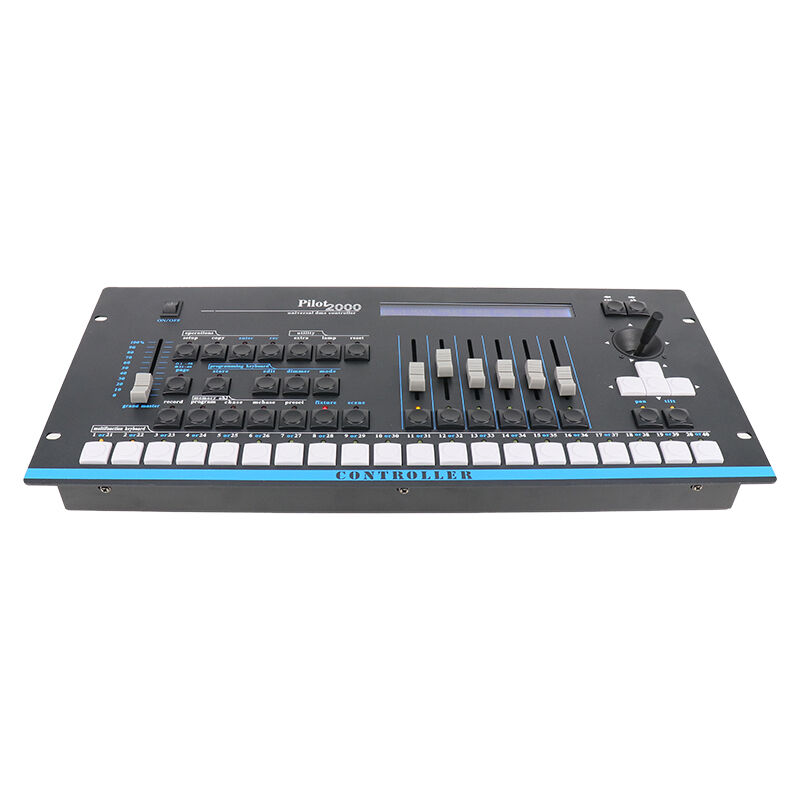

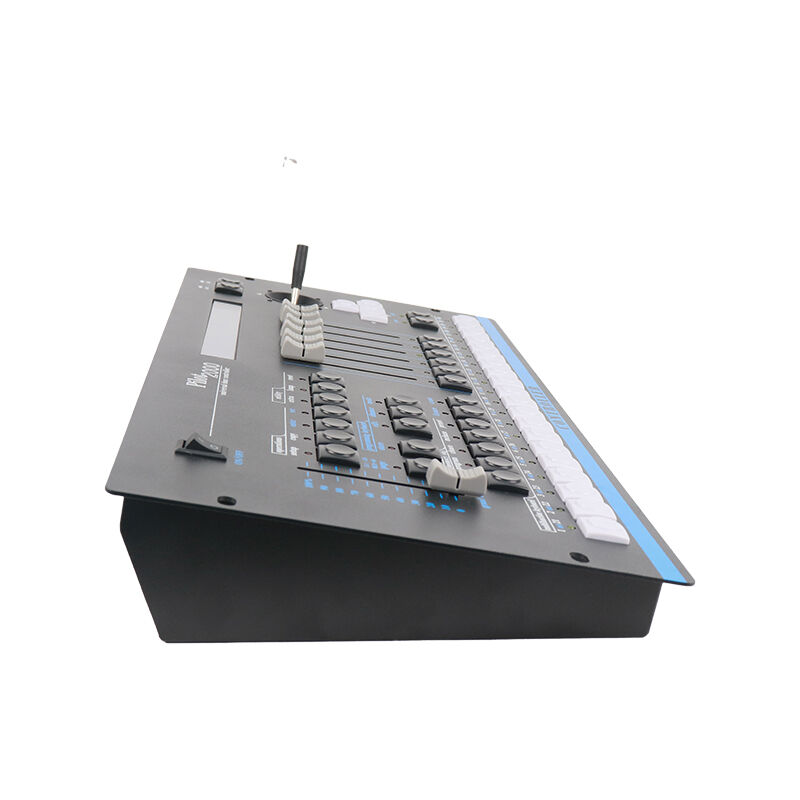

Pilot 2000 DMX Controller DJ Lighting Console For Moving Hear Light

Power supply: external AL (+ 12V DC, Max 2A)-cod. 003-1286
Required power supply: + 12 VDC, 700 Ma
Power: 8.4 W
Electronic Equipment: pFeatures CS 0238 + 0239(main logic circuit) : CS 0237(control circuit) CS 0234 + 0236(cursor and joystick)
Memory Protection: programs and/or settings can be protected by flipping a switch
Settings: via Toggle Switch (for RS-232 and MIDI)

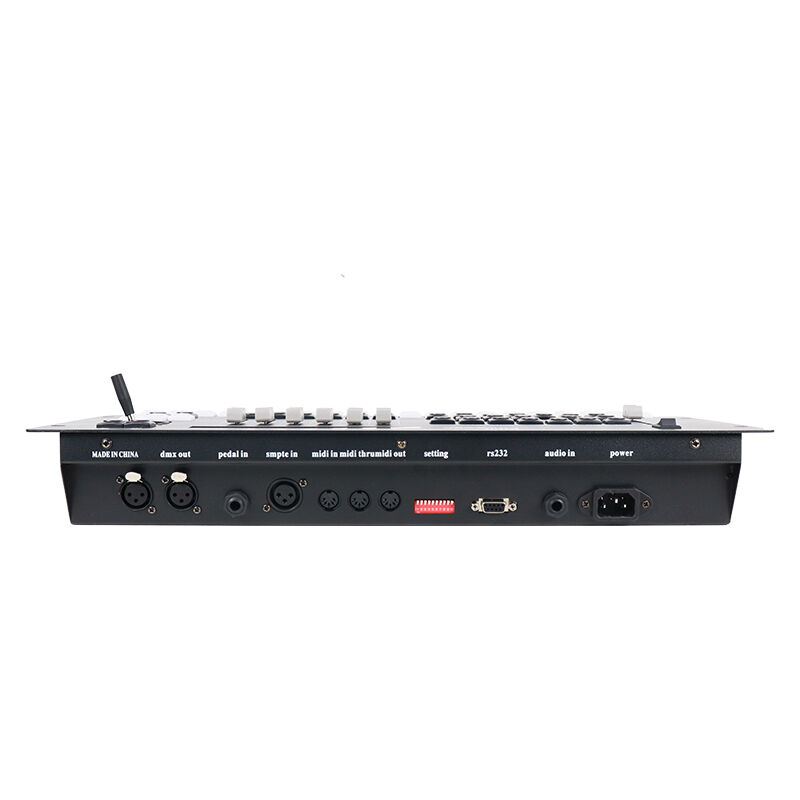

Input/output:
Serial digital return signal through DMX IN/Out () of 5-pin XLR-F connector
6.3 mm. Panel connector for up/down memory change pedals;
3mm. Unbalanced stereo plug for audio input-OdB, Mono (or left channel)
DB9 connector for RS-232 serial connection with personal computer
3-pin XLR-F for SMPTE signal input;
The standard 5-pin DIN connector is used for MIDIIN-THRU-OUT.
DMX channel: 512(Max) , configurable for smart unit and Dimmer channels
Chassis: steel plate with epoxy powder coating
Size: 5U Rack 19”(48.2 cm x 22.2 cm x 6.5 cm high) . Weight: 3.7 kg
Packing Size: 59 * 26 * 15cm
